2-units brewhouse 300 liters per brew
unit price: 11100 €
|Sizes (WxDxH)||3000x1200x1700 mm|
|Working volume||300 l.|
|Full volume||480 l.|
|Mash-wort kettle heating power||20 kWt|
|Mash-wort pump||Ebara DWO-150 1,1 kWt|
|Pump productivity||33 m3/h|
|Mixer motor power||0,75 kWt|
|Mixer parameters||97 n/m with adjustment of turns|
|Raker motor power||0,37 kWt|
|Raker parameters||3,5 rpm; 220 n/m|
|Total power consumption||23 kWt|
|Kettle weight (empty)||180 kg|
|Lauter tun weight (empty)||110 kg|
|Pipelines diameter||34 mm|

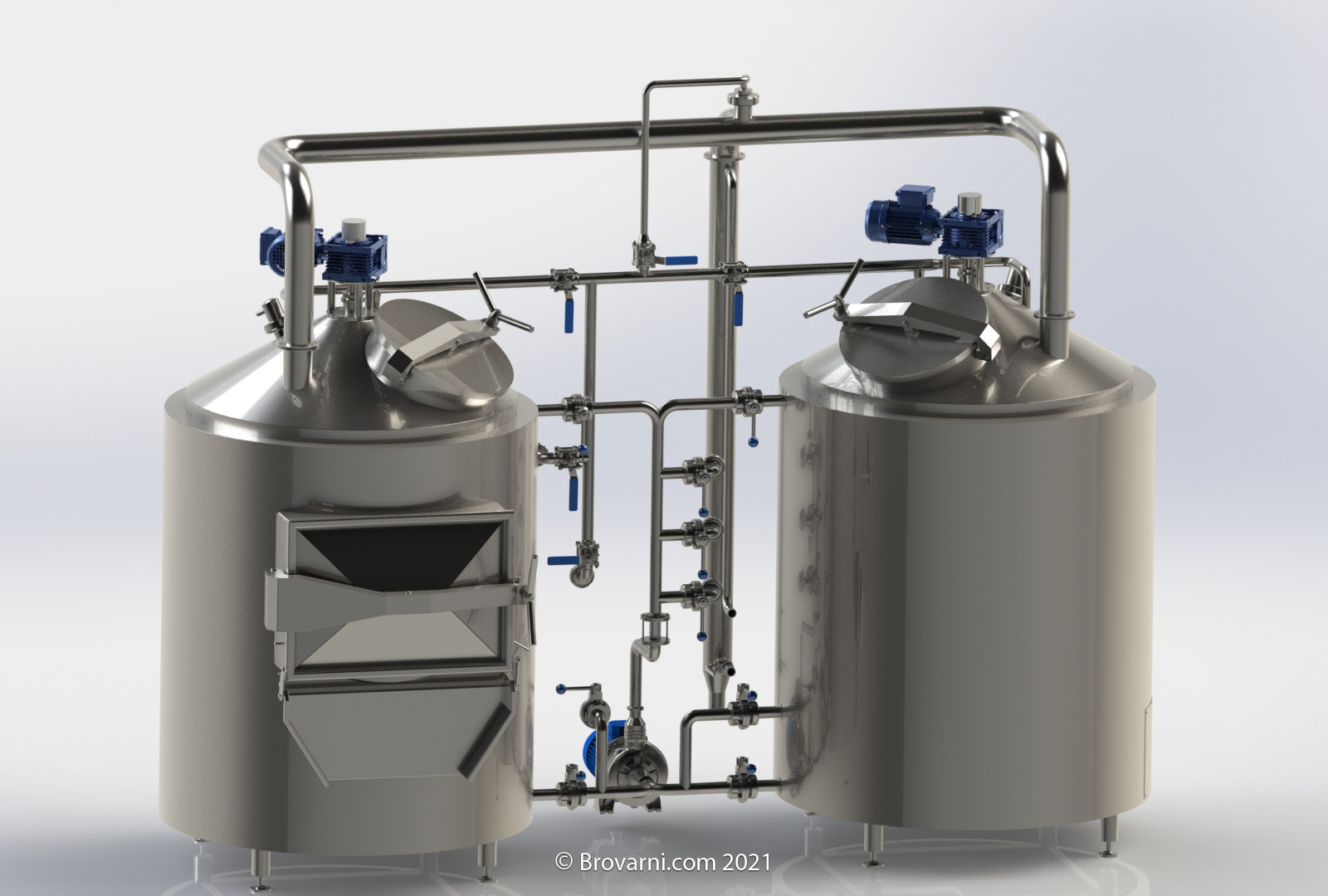

Two vessels brewhouse BH-300 consists of:
- Mash-wort kettle;
- Lauter tun;
- Mash-wort pump;
- Control panel.
All units of the brewhouse, all valves, the pump and the surfaces in contact with the product are made of food grade 304 stainless steel. All internal surfaces of the tanks and welds are polished to the required degree. The surface inside the containers is a polished.
Mash-wort kettle is equipped with a mash mixer with speed control, inspection hatch, measuring line, temperature sensor and lighting inside the boiler, two rotary cleaning heads with connection to CIP-agregat, bottom drain for mash and top drain for wort without sediment.
The lauter tun is equipped with removable filter plates, a grain raker, an inspection hatch, lighting inside the tun, two rotary cleaning heads with connection to a CIP-agregat, and a hatch for unloading grain with a folding tray under it.
The kettle and tun have ventilation pipes for steam exhaust, are insulated with polyurethane foam, sheathed with stainless steel food.
The control panel performs the following functions: adjusting the temperature of the mash/wort, adjusting the temperature of heat carrier, turning on and adjusting the speed of the pump and mixer, turning on the raker and internal lighting of the tanks. Execution via touchscreen with programming of temperature pauses is possible.
